Chromosomes and Karyotype Analysis

Exploring Genome Structure and Chromosomal Variation

Chromosomes are highly organized structures composed of DNA and associated proteins that carry the genetic information required for cellular growth, development, function, and reproduction. In eukaryotic organisms, chromosomes are primarily located within the nucleus, where they organize genetic material and facilitate its accurate transmission during cell division.

Chromosome analysis is an essential component of genetics, molecular biology, cytogenetics, and biomedical research. By examining chromosome number, structure, and organization, researchers can investigate genomic variation, identify chromosomal abnormalities, and improve understanding of the relationship between genetic architecture and biological function.

Karyotype analysis is a cytogenetic technique used to visualize and arrange chromosomes according to characteristics such as size, centromere position, and banding patterns. The resulting karyotype provides an overview of an organism's chromosome complement and can reveal significant numerical or structural changes.

Understanding Chromosome Structure and Organization

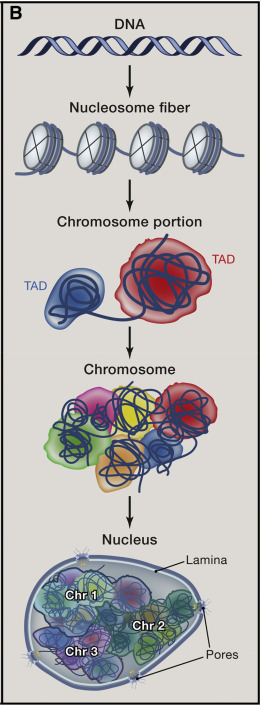

Chromosomes contain DNA molecules associated with histone and non-histone proteins. This organization allows long DNA molecules to fit within the nucleus while maintaining accessibility for essential processes, including DNA replication, transcription, and repair.

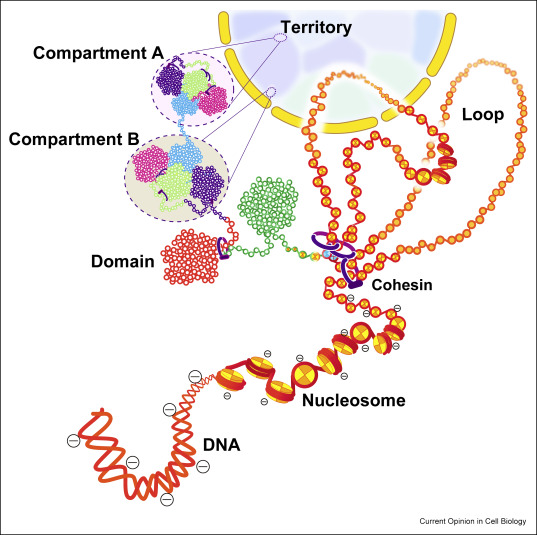

Chromatin Organization

Chromatin is the complex formed by DNA and associated proteins. Its organization changes according to cellular activity and the stage of the cell cycle. During interphase, chromatin contains regions with different levels of compaction, supporting the regulation of gene expression and the maintenance of genome stability.

During cell division, chromatin becomes highly condensed, allowing individual chromosomes to be visualized using conventional cytogenetic methods.

Chromosome Components

Several structural features are important for chromosome identification and function:

Centromere: A specialized chromosome region that supports kinetochore formation and the attachment of chromosomes to the spindle during cell division.
Telomeres: Repetitive DNA sequences and associated proteins that protect chromosome ends and contribute to genome stability.
Chromosome arms: The short arm, designated p, and the long arm, designated q, are separated by the centromere.
Replication origins: Genomic sites where DNA replication begins.
Genes and regulatory sequences: DNA regions that encode functional products or regulate gene expression.

These components contribute to the faithful transmission of genetic information and the maintenance of chromosome integrity.

What Is Karyotype Analysis?

Karyotype analysis is the systematic examination of the number and morphological characteristics of chromosomes in a cell or organism. In humans, a typical diploid somatic cell contains 46 chromosomes arranged into 23 pairs: 22 pairs of autosomes and one pair of sex chromosomes.

A conventional karyotype is generally prepared from cells arrested during metaphase, when chromosomes are sufficiently condensed for visualization. The chromosomes are photographed, identified, and arranged into homologous pairs according to their size, centromere position, and characteristic banding patterns.

A standard human karyotype may be represented as 46,XX or 46,XY. These notations describe typical chromosome complements associated with female and male chromosomal patterns, respectively, although chromosome composition and biological sex development can be more complex.

Karyotype analysis provides a broad overview of chromosome architecture. However, it does not detect every genetic alteration, particularly small DNA sequence variants or subtle changes below the resolution of the method used.

Major Methods Used in Chromosome Analysis

Conventional Karyotyping

Conventional karyotyping remains an important technique for evaluating chromosome number and large structural abnormalities. The procedure commonly involves cell culture, chromosome preparation, staining, microscopic examination, and image analysis.

Giemsa staining is frequently used to produce G-banding patterns. These characteristic bands help cytogeneticists identify individual chromosomes and detect certain deletions, duplications, translocations, inversions, and aneuploidies.

Fluorescence In Situ Hybridization (FISH)

Fluorescence in situ hybridization uses fluorescently labeled DNA probes that bind to complementary target sequences on chromosomes or within nuclei. The resulting signals allow researchers to investigate specific genomic regions.

FISH is useful for detecting selected chromosomal rearrangements, gene amplifications, deletions, and chromosome copy-number changes. Unlike conventional karyotyping, it can target particular sequences with greater specificity, but its findings depend on the probes selected.

Chromosomal Microarray Analysis

Chromosomal microarray analysis evaluates genomic copy-number variation across many regions of the genome. It can identify deletions and duplications that are too small to be detected by routine karyotyping.

Depending on the platform, microarrays may also provide information about regions of homozygosity or patterns associated with uniparental disomy. However, conventional copy-number microarrays generally do not detect balanced chromosomal rearrangements reliably and may not identify low-level mosaicism.

Molecular and Genome-Based Approaches

Next-generation sequencing, long-read sequencing, and other genomic technologies complement conventional karyotyping by identifying structural variants, complex rearrangements, and chromosome-level changes.

Numerical and Structural Chromosomal Abnormalities

Chromosomal abnormalities affect chromosome number or structure and may arise from errors during cell division or DNA repair.

Numerical Abnormalities

Aneuploidy: An abnormal number of individual chromosomes.
Trisomy: An extra copy of a chromosome.
Monosomy: The loss of one chromosome.
Polyploidy: More than two complete chromosome sets.

Structural Abnormalities

Deletion: Loss of a chromosome segment.
Duplication: Repetition of a chromosome segment.
Inversion: Reversal of a chromosome segment.
Translocation: Transfer of genetic material between chromosome regions.
Ring chromosome: Formation of a circular chromosome following structural changes.

The effects depend on the affected region, gene content, and genomic context.

Applications of Karyotype Analysis

Clinical Genetics and Prenatal Investigation

Karyotyping helps investigate chromosomal disorders, developmental differences, infertility, and recurrent pregnancy loss.

Cancer Research and Cytogenetics

Chromosome analysis identifies genetic changes associated with cancer development, diagnosis, and prognosis.

Evolutionary Biology and Comparative Genomics

Comparing chromosomes across species provides insights into genome evolution and genetic diversity.

Biotechnology and Cell-Line Quality Control

Karyotyping helps monitor chromosome stability in cultured cells used for research and biotechnology.

The Karyotyping Workflow

Sample collection: Obtain an appropriate biological sample.
Cell culture: Grow cells when necessary.
Metaphase preparation: Prepare condensed chromosomes for examination.
Staining: Apply techniques such as G-banding.
Microscopy: Capture chromosome images.
Analysis: Arrange chromosomes into pairs and identify abnormalities.
Reporting: Document and interpret the findings.

Challenges and Limitations

Conventional karyotyping requires suitable chromosome preparations and may miss small genetic changes. Detecting mosaicism also depends on the proportion of affected cells and the number examined. FISH, chromosomal microarrays, and sequencing can provide complementary information.

Emerging Technologies and Future Perspectives

Artificial intelligence can assist chromosome classification and image analysis, while long-read sequencing helps characterize complex structural variants. Integrating these technologies may improve genomic analysis and understanding of chromosome organization.

Conclusion

Karyotype analysis is an important tool for studying chromosome structure, numerical abnormalities, and genome stability. Combined with modern molecular and computational methods, it supports research in genetics, medicine, evolution, and biotechnology.
